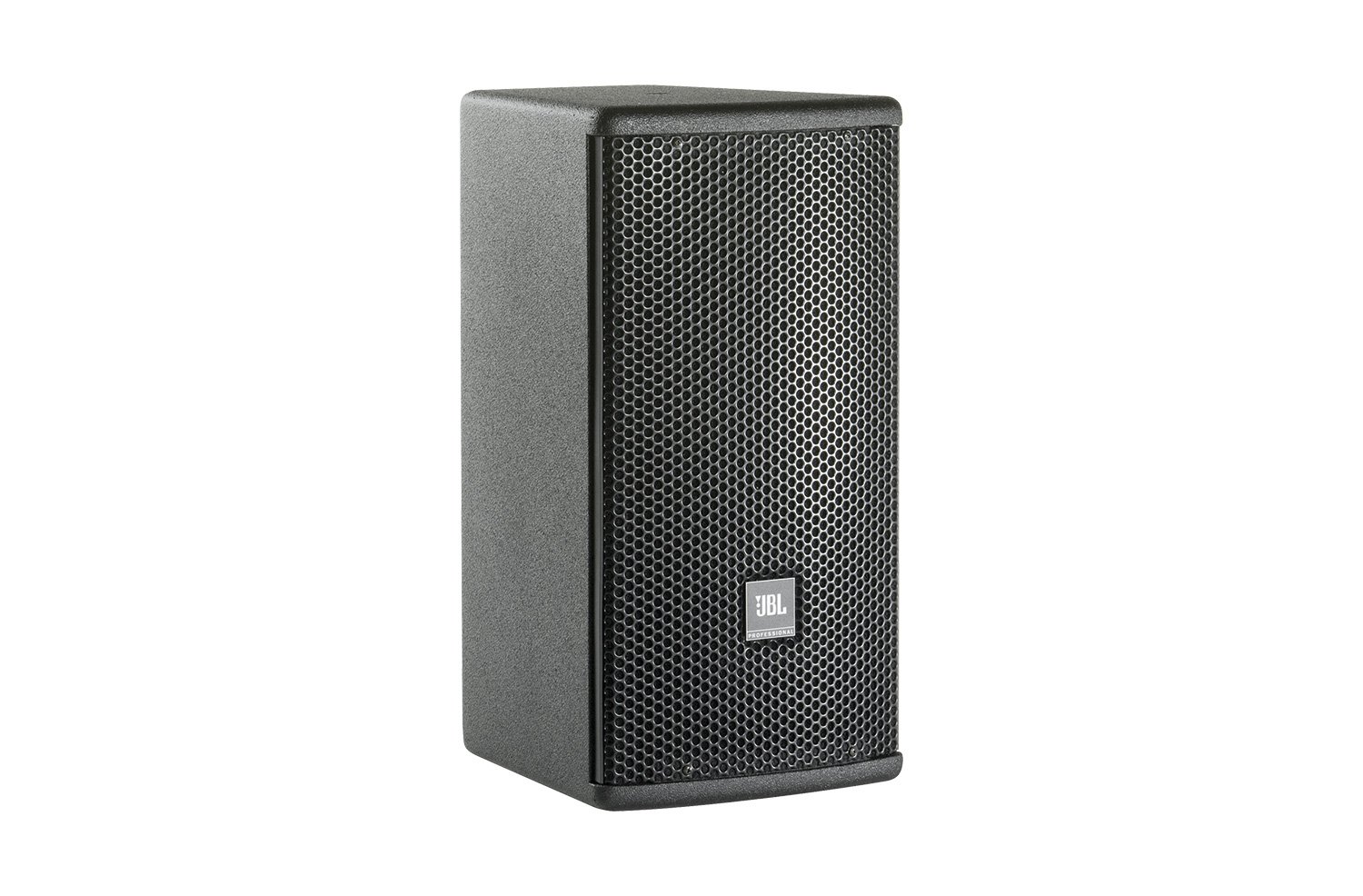

Ultra-Compact 2-Way Loudspeaker with 1 x 6.5″ LF. 90° x 90° Coverage, Passive. Compact PT™ Progressive Transition™ Waveguide. Suspension Eyebolts Not Included. Optional U-Bracket Model MTU-16.
Looking for the best price or just need expert advise?
Give s a call at 1-888-525-6696 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
High output, 2-way loudspeaker systems combining flexibility with high fidelity
Features

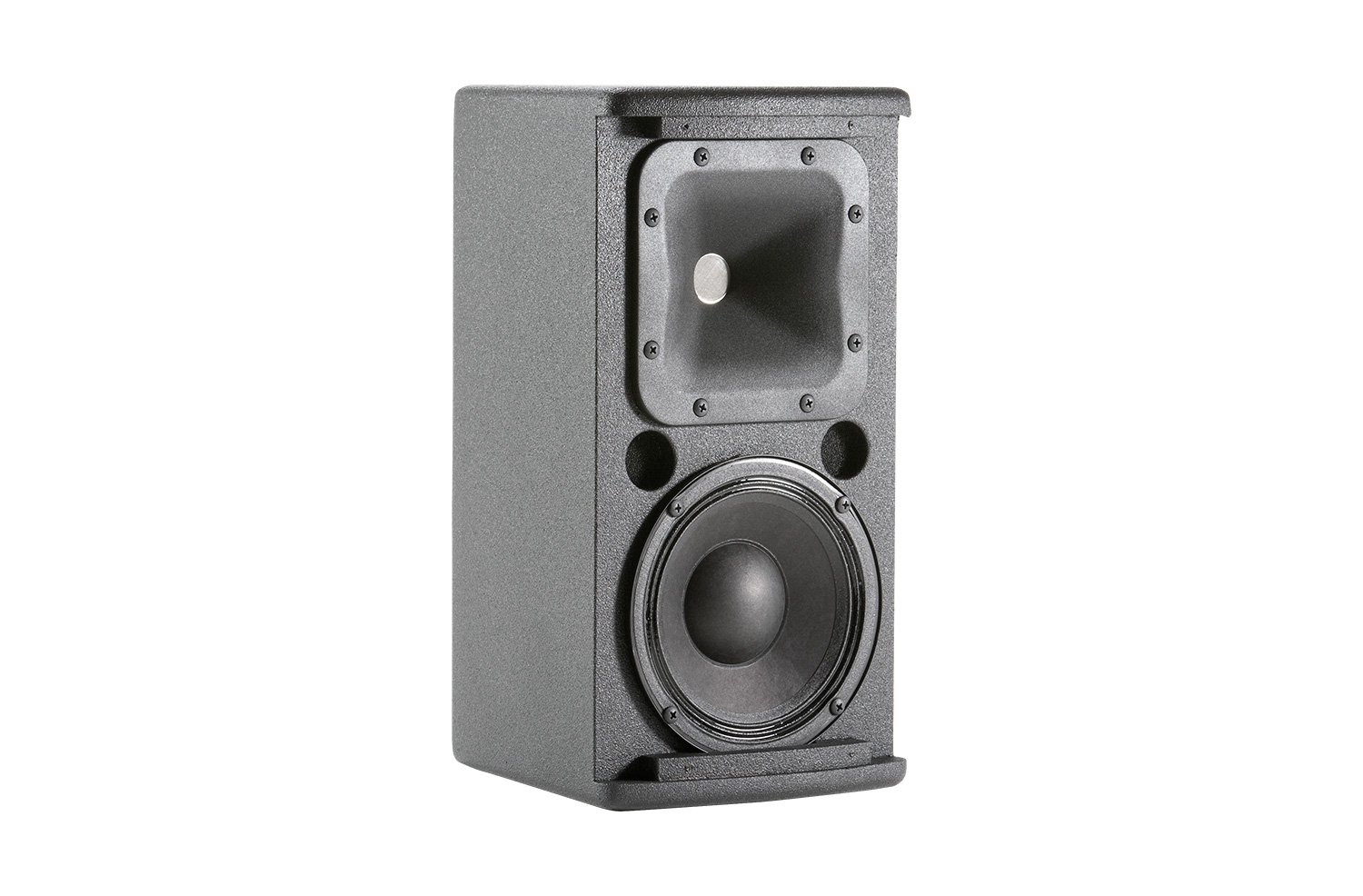

1” Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
165 mm (6.5 in) LF transducer
Ultra compact enclosure
320W Program
Dual Neutrik NL4 connectors plus screw terminal
FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
Specifications
Frequency Response (-10dB) 80 Hz -20 kHz
Frequency Response (±3 dB) 90 Hz -18 kHz
System Power Rating 225 W (AES rated)
150 W / 300 W / 600 W (Continuous/Program/Peak) (IEC rated)
Impedance 16 ohms
Coverage Pattern 90° x 90°
Dimensions (H x W x D) 241.3 x 150.3 x 177.8mm (9.5 x 5.9 x 7.0in)
Net Weight (each) 4.7 kg (10.5 lb)
Crossover Modes Passive
Maximum SPL (1m) 108 dB
System Sensitivity (1w @ 1m) 86 dB SPL
Nominal Section Impedances 16 ohms
LF Driver 1 x JBL 225J, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil
Nominal LF Driver Impedance 16 Ohms
HF Driver 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter
Enclosure 12 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount® 20.5 or MultiMount® MM-008-BT
Environmental Mil-Std 810; IPx3 per IEC529.
| Weight | 19.45 lbs |
|---|---|
| Dimensions | 13.00 × 12.00 × 17.00 in |
| Part no | AC16 |
| Weight(lbs) | 19.45 |
| upc | 691991010583 |
