0.28:1, ultra short-throw lens with power zoom (for use with compatible 1DLP projectors)
$9,600.00
Looking for the best price or just need expert advise?
Give s a call at 1-888-525-6696 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

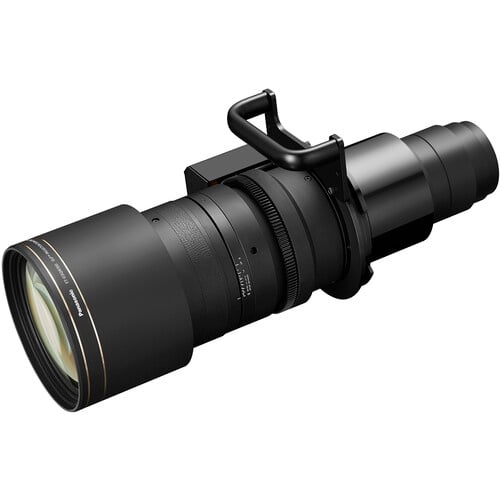

Add ultra-short throw capability to your compatible projector with the Panasonic ET-DLE020 Ultra-Short Throw Zoom Lens. It provides varying short-throw ratios depending on the resolution setting of your projector and features zoom and zero offset for flexible setup options.
Enhanced Flexibility for Easy Installation
The optical zoom of the ET-DLE020 provides an installation margin of ±1.77″ and easy image adjustment with a throw ratio of 0.28:1 with zero image offset. These features combine with the wide vertical and horizontal lens shift of compatible laser projectors to broaden your installation options, expediting setup.
Reliable Design
The ET-DLE020 features an aspherical all-glass lens that’s heat- and scratch-resistant to augment reliability for long-term use.
On-Axis Rear Projection
The straight, mirrorless design of this lens makes screen-centered projector installation possible in rear-projection applications.
Zero Offset and Flexible Setup for Multi-Screen Projection
Install your projector on the ceiling and near the wall for full top-to-bottom screen coverage with zero offset and minimal shadowing, even in low-ceiling applications. Zoom and lens shift help edge-blending adjustment achieve multi-screen projection.
Key Specs
Lens Type
Ultra Short-Throw, Zoom
Throw Ratio
0.28 to 0.299:1 (WUXGA)
0.294 to 0.314:1 (WXGA)
0.29 to 0.309:1 (XGA)
Aperture
f/2
Focal Length
f = 4.1 to 4.4mm
General
Compatibility
Panasonic PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620
Lens Type
Ultra Short-Throw, Zoom
Performance
Throw Ratio
0.28 to 0.299:1 (WUXGA)
0.294 to 0.314:1 (WXGA)
0.29 to 0.309:1 (XGA)
Aperture
f/2
Focal Length
f = 4.1 to 4.4mm
Projection Size
100 to 400″ / 254.00 to 1016.00 cm
Lens Shift Percentage
Vertical: -16 to 50%
Horizontal: -20 to 10%
Physical
Exterior Dimensions
ø: 6.7 x L: 15.4″ / ø: 170.0 x L: 391.0 mm
Weight
7.05 lb / 3.2 kg
Packaging Info
Package Weight
15.81 lb
Box Dimensions (LxWxH)
28.7 x 16.3 x 16.1″
| Weight | 15.81 lbs |
|---|---|
| Dimensions | 28.7 × 16.3 × 16.1 in |
| upc | 885170368866 |
