Description
The bold, bright, flexible display solution for impactful digital signage.

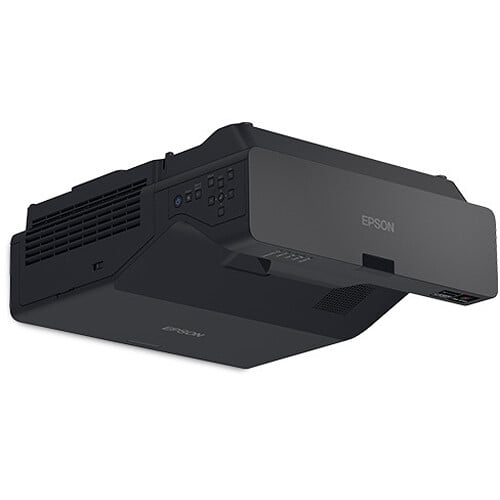

Bring attention-grabbing digital signage to conference rooms, office spaces, hotel lobbies, restaurants and more with the PowerLite® 775F. Featuring Epson’s proprietary 3-chip 3LCD technology, this flexible display is capable of projecting onto nearly any surface, delivering impressively bright, sharp and colorful Full HD images with 4,100 lumens of color and white brightness1. With its intelligent ultra short throw design, sleek black casing and 360-degree placement capabilities, the PowerLite 775F can be placed nearly anywhere to deliver an incredibly large image size up to 150″. Offering a convenient Wake-On Sync function, the PowerLite 775F is ready to display in seconds and supports 16:9 as well as ultra wide 21:9 and 16:6 aspect ratios for greater flexibility in the design and delivery of digital content. Engineered for reliability, it includes a virtually maintenance-free, 20,000-hour laser light source, with no lamps to replace—ever2. The PowerLite 775F comes with wireless connectivity with casting capability3 for convenient content sharing and includes free downloadable content management software4 for dynamic digital signage design.
Best-in-Class Color Brightness5; 4,100 lumens1
Full HD 1080p resolution for exceptional image quality
No lamps to replace ever with solid-state laser light source
Convenient ultra short throw design
Free, easy-to-use content management software4
Best-in-Class Color Brightness5 with 3-chip 3LCD technology
4,100 lumens of color and white brightness1
No lamps to replace ever
Solid-state, 20,000-hour, virtually maintenance-free laser light source2
Easily programmable with the built-in media player
Which includes templates, effects, color filters and customizable options; playlist and playback functions allow for seamless content management for single or multiple PowerLite projectors
Built-in wireless networking with enterprise-level security
Additionally, you can connect with Miracast®, which supports software-free, peer-to-peer wireless connectivity
Easily project wall-sized images
Built-in edge blending and split screen6 features for easy, scalable projection
Convenient ultra short throw design — displays large, true-to-life images up to 150″ from less than two feet away
Simple, flexible installation — 360-degree placement capabilities; mount or place the projector in any position, from landscape to portrait
Easy access and maintenance — with remote management and control tools
Flexible display — 16:9 display with additional support for ultra wide 16:6 and 21:9 format makes the display ideal for large, multi-device, split screen images6
Eco Features
RoHS compliant
Recyclable product7
Epson 775F Specs
Key Specs
Display System
LCD
Native Chip Resolution
1920 x 1080 (Full HD)
Maximum Brightness
White: 4100 Lumens
Color: 4100 Lumens
Throw Ratio
0.25 to 0.35:1
Inputs/Outputs
3 x HDMI Audio, Video Input
1 x DE-15/DB-15 (VGA) Video Input
1 x DE-15/DB-15 (VGA) Video Input/Output
1 x RCA (Composite) Video Input
3 x 1/8″ / 3.5 mm Mini Audio Input
1 x 1/8″ / 3.5 mm Mini Audio Output
1 x USB-A Power Output
2 x USB-B Audio, Video Input
1 x DE-9/DB-9 (RS-232) Control Input/Output
1 x RJ45 (Ethernet) LAN Input/Output
Show More
Light Source
Laser Phosphor
Image Display
Display System
LCD
Native Chip Resolution
1920 x 1080 (Full HD)
Maximum Brightness
White: 4100 Lumens
Color: 4100 Lumens
Aspect Ratio
Native: 16:9
Supported: 16:10
Supported: 4:3
Supported: 16:6
Supported: 21:9
Dynamic Contrast Ratio
2,500,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Lens
Focus
Manual
Lens
f/1.6 (f = 3.7 mm)
Throw Distance
13 – 35″ / 0.3 – 0.9 m
Throw Ratio
0.25 to 0.35:1
Projection Size
49 – 150″ / 124.5 – 381.0 cm
Features
Keystone Correction
Manual-Vertical: ± 3°
Manual-Horizontal: ± 3°
Supported HDR Input Formats
None
Digital Zoom
1.35x
Multi-Input Support (PIP/PBP)
Not Specified by Manufacturer
Remote
Yes
Input/Output Connectors
Inputs/Outputs
3 x HDMI Audio, Video Input
1 x DE-15/DB-15 (VGA) Video Input
1 x DE-15/DB-15 (VGA) Video Input/Output
1 x RCA (Composite) Video Input
3 x 1/8″ / 3.5 mm Mini Audio Input
1 x 1/8″ / 3.5 mm Mini Audio Output
1 x USB-A Power Output
2 x USB-B Audio, Video Input
1 x DE-9/DB-9 (RS-232) Control Input/Output
1 x RJ45 (Ethernet) LAN Input/Output
Hardware
Mobile App Compatible
Yes
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless LAN / Wi-Fi
Yes, Built-in
Bluetooth
None
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 30,000 Hours
Medium Brightness: 20,000 Hours
Fan Noise
Full Brightness: 37 dB
Low Brightness: 27 dB
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 277 W
Low Brightness: 214 W
Standby Mode (Lamp Off): 0.5 W
Certifications
RoHS
*as per Manufacturer
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
20 to 80% (Non-Condensing)
Dimensions (W x H x D)
14.1 x 15.6 x 6.4″ / 35.8 x 39.6 x 16.3 cm Including Feet
Weight
12.5 lb / 5.7 kg
Packaging Info
Package Weight
17.805 lb
Box Dimensions (LxWxH)
18.9 x 17.6 x 14″
