Description
Deliver brilliant displays with remarkable brightness and 4K Enhancement1.
The versatile PowerLite L775U laser projector brings strikingly clear images to meeting rooms, classrooms and beyond. This conveniently lightweight, compact projector offers native WUXGA with 4K Enhancement1 and an incredible 7,000 lumens of brightness2, providing smooth, ultra bright, detailed images—even up close. The projector’s sleek, black exterior seamlessly blends into black ceilings, making it ideal for museums and event spaces. Display images up to 500” and switch between a variety of aspect ratios, from standard 16:10 to ultra wide 21:9 that provides for a more immersive experience—ideal for hybrid work environments as well as classrooms. The more information that needs to be displayed on a single screen, the more critical the need for a larger display and higher resolution.
Simple to install, the PowerLite L775U is easy to operate from start to finish. Designed with convenience in mind, this projector features a 20,000-hour virtually maintenance-free laser light source and air filter3. Plus, simplify complex multi-projector applications with the optional attachable PixAlign™ camera.
Best-in-Class Color Brightness4; 7,000 lumens2
WUXGA with 4K Enhancement1 for clear, detailed images
20,000-hour, virtually maintenance-free laser light source and air filter3
Picture up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9
Ultra bright, true-to-life images
Best-in-Class Color Brightness4 with 3-chip 3LCD technology and 7,000 lumens of color and white brightness2
4.6 million pixels on screen
WUXGA with 4K Enhancement1 provides a visibly smoother and sharper display, even at close viewing distances; accepts 4K content
Virtually maintenance-free
20,000-hour laser light source and air filter3
Large, ultra wide display
Display images up to 500″ diagonal either in standard 16:10 and 16:9 or in ultra wide 16:6 and 21:9 for immersive video conferencing
Streamlined installation
Wide lens shift, 1.6x optical zoom, built-in edge blending and geometric correction tools via on-screen menu or Epson® Professional Projector Tool software for Windows® and macOS®
Versatile connectivity options
HDBaseT®, 2x HDMI® inputs, HDMI output, RJ-45, RS-232 and control management tools
Simplified operation and content sharing — auto power-on, split screen5, screen sharing with Epson iProjection™6 and optional wireless networking with the ELPAP11 adapter
Customizable brightness modes — set the projector to maintain a consistent brightness level over time, or set the brightness to Extended to help maximize the life of the laser light source

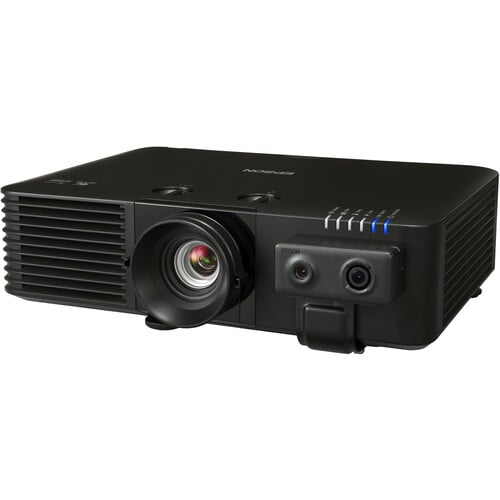

Optional PixAlign camera — adds powerful multi-projector tools; blending assist for super-wide displays; simple stacking without an external PC; screen matching and auto color calibration
Easily programmable with the built-in media player and content creation app7 — includes templates, effects, color filters and customizable options; playlist and playback functions allow for seamless content management directly or via the network
Eco Features
RoHS compliant
Recyclable product8
Epson America, Inc. is a SmartWay® Transport Partner9
Epson L775U Specs
Key Specs
Display System
0.67″ LCD
Native Chip Resolution
1920 x 1200 (WUXGA)
Maximum Brightness
White: 7000 Lumens
Color: 7000 Lumens
Throw Ratio
1.35 to 2.2:1
Inputs/Outputs
2 x HDMI Audio, Video Input
1 x HDMI Audio, Video Output
1 x RJ45 (Ethernet) LAN Input/Output
1 x RJ45 (HDBaseT) LAN Input/Output
1 x USB-A Power Output
1 x USB-A Video Input
1 x USB-B Service Input
1 x DE-9/DB-9 (RS-232) Control Input
1 x 1/8″ / 3.5 mm Mini Audio Output
Show More
Light Source
Laser Phosphor
Image Display
Display System
0.67″ LCD
Native Chip Resolution
1920 x 1200 (WUXGA)
Supported Resolutions
Minimum: 640 x 480
Maximum: 1400 x 1050
Maximum Brightness
White: 7000 Lumens
Color: 7000 Lumens
Uniformity
86%
Aspect Ratio
Native: 16:9
Supported: 4:3
Supported: 16:10
Supported: 16:6
Supported: 21:9
Dynamic Contrast Ratio
2,500,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 26 to 135 kHz
Vertical: 23.98 to 60 Hz
Lens
Focus
Manual
Lens
f/1.5 – 1.7 (f = 20 – 31.8 mm)
Lens Shift
Vertical: ± 50%
Horizontal: ± 20%
Optical Zoom
1.6x
Throw Distance
7.64 – 12.4′ / 2.33 – 3.78 m
Throw Ratio
1.35 to 2.2:1
Projection Size
50 – 500″ / 1.3 – 12.7 m
Features
Keystone Correction
Vertical: ± 30°
Horizontal: ± 30°
Supported HDR Input Formats
None
Multi-Input Support (PIP/PBP)
Not Specified by Manufacturer

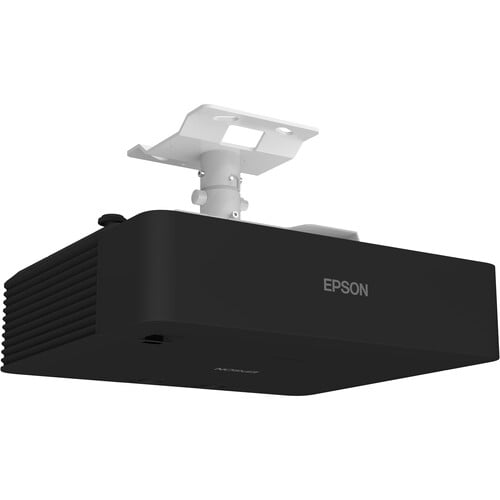

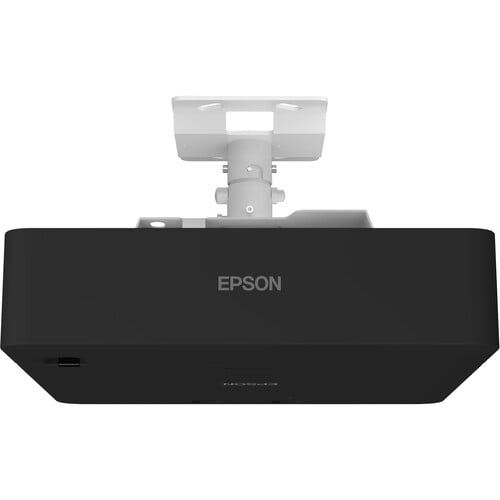

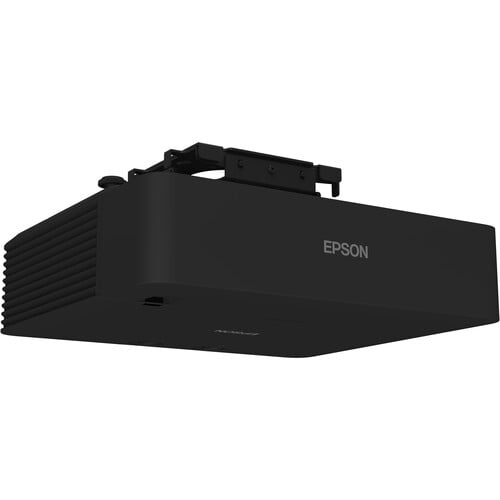

Ceiling Mountable
Yes
Built-In Speaker
Yes (Mono)
Speaker Power
10W
Remote
Yes
Input/Output Connectors
Inputs/Outputs
2 x HDMI Audio, Video Input
1 x HDMI Audio, Video Output
1 x RJ45 (Ethernet) LAN Input/Output
1 x RJ45 (HDBaseT) LAN Input/Output
1 x USB-A Power Output
1 x USB-A Video Input
1 x USB-B Service Input
1 x DE-9/DB-9 (RS-232) Control Input
1 x 1/8″ / 3.5 mm Mini Audio Output
HDCP Support
, Version 2.3
Hardware
Mobile App Compatible
Yes
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Bluetooth
None
General
Light Source
Laser Phosphor
Expected Lamp Life
Medium Brightness: 20,000 Hours
Low Brightness: 30,000 Hours
Fan Noise
Medium Brightness: 31 dB
Low Brightness: 23 dB
Security
Cable Lock Slot
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: 382 W
Low Brightness: 285 W
Standby Mode (Lamp Off): 0.5 W
Operating Temperature
32 to 113°F / 0 to 45°C
Dimensions (W x H x D)
17.3 x 4.8 x 12.0″ / 43.9 x 12.2 x 30.5 cm Excluding Feet
17.3 x 5.4 x 12.6″ / 43.9 x 13.7 x 32.0 cm Including Feet
Weight
19.1 lb / 8.7 kg
Packaging Info
Package Weight
27.025 lb
Box Dimensions (LxWxH)
22.1 x 21.9 x 8.9″
