LG 32TNF5P-B 32″ Touch IPS 1920×1080 (FHD) 500nit Display

Description

Brightness : 500 nit
Multi Touch Point : 10 Points (Max.)
Interface : HDMI (2, HDCP 1.4), RS-232C In, RJ45(LAN), IR In, USB2.0 Type A, Audio Out, Touch USB (USB 2.0 Type B)

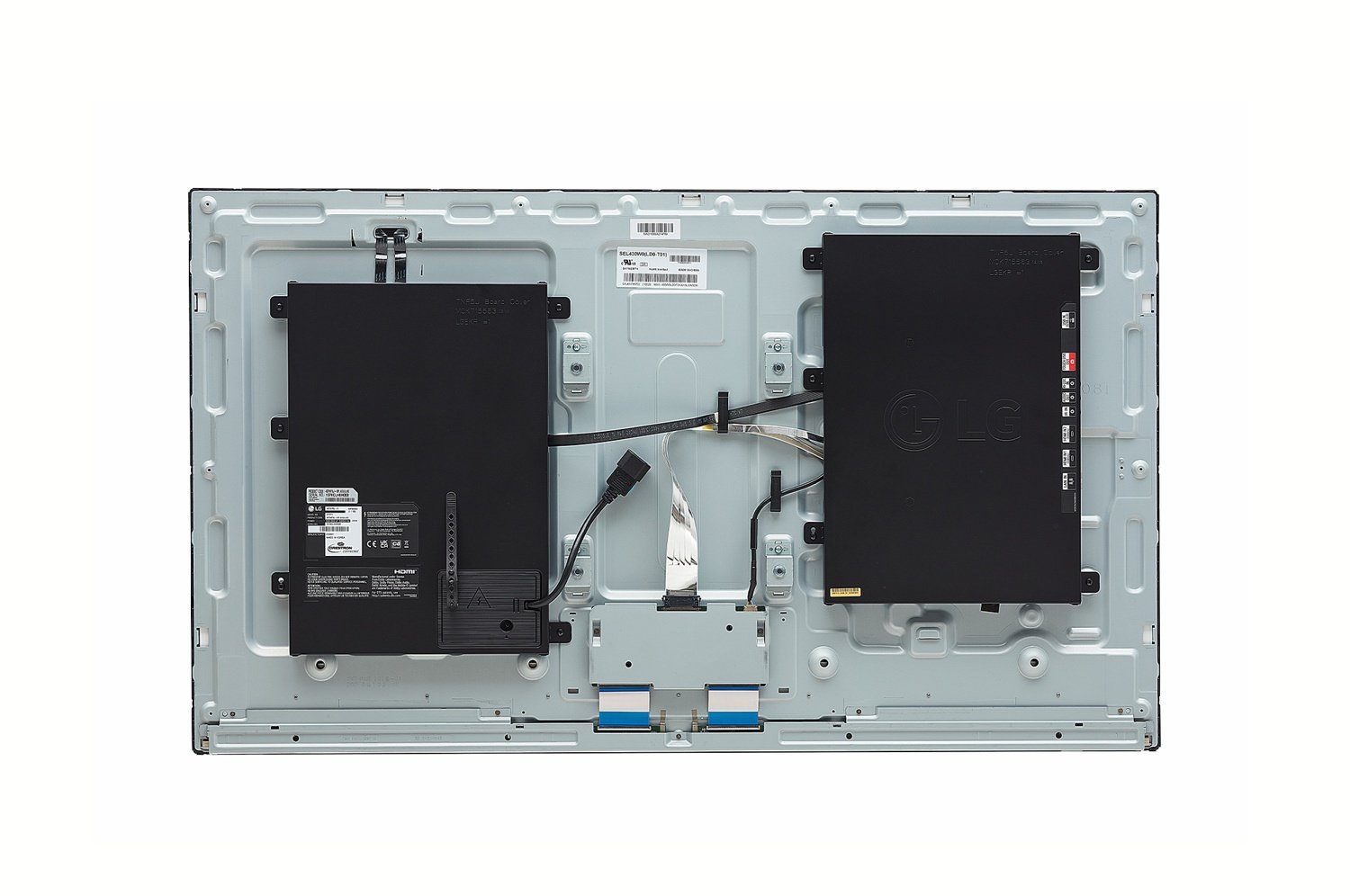

New In-Cell Touch Open Frame for Optimal Customization
Slim & Light
The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

Clear Picture Quality
Compared to general touch products, TNF5P implements clear picture quality without distortion and milk effects caused by additional touch sensor film parts.

Design Flexibility
By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.

24hrs / 7days
TNF5P’s excellent durability allows for use in kiosks that require a full day of operation.

Wide Viewing Angle
IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

45-degree Tilt (Face up) Installation Possible
When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.

10 Points of Multi-Touch
The TNF5P provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC* and web engine, is available on TNF5P for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

* SoC : System On Chip
** GUI : Graphical User Interface

Tech Spec

Panel
Screen Size 32″
Panel Technology IPS
Native Resolution 1,920 x 1,080 (FHD)
Brightness 500 nit
Contrast Ratio 1,000:1
Color gamut NTSC 72%
Viewing Angle (H x V) 178 x 178
Color Depth 8bit, 16.7 Million colors
Response Time 9ms (G to G)
Surface Treatment (Haze) Haze 25%
Operation Hours (Hours / Days) 24 / 7
Portrait / Landscape Yes / Yes

Mechanical Specification
Bezel Color Black
Bezel Width 11.3 / 11.3 / 11.3 / 13.2 mm
Weight (Head) 5.8 kg
Packed Weight 6.9 kg
Monitor Dimensions (W × H × D) 723.0 x 419.4 x 39.1 mm
Carton Dimensions (W × H × D) 812 x 510 x 142 mm
VESA™ Standard Mount Interface 200 x 200

Key Feature (Hardware)
Internal Memory 8GB (System 5GB + Available 2.48GB)
Temperature Sensor Yes
Acceleration(Gyro) Sensor Yes

Key Feature (Software)
webOS ver. webOS 6.0
Embedded CMS Local Contents Scheduling, Group Manager
USB Plug & Play Yes
Fail over Yes
Background Image Booting Logo Image, No Signal Image
Video Tag Yes (4), External Input (1)
Play via URL Yes
Screen Rotation Yes
Gapless Playback Yes
Setting Data Cloning Yes
SNMP Yes
ISM Method Yes
Status Mailing Yes
Control Manager Yes
Cisco Certi. Yes
3rd Party Compatibility Crestron Inside
Power Smart Energy Saving, PM mode, Wake on LAN, Network Ready
HDMI-CEC Yes
SI Server Setting Yes
webRTC Yes
Pro:Idiom Yes

Environment Conditions
Operation Temperature 0 °C to 40 °C
Operation Humidity 10% to 80%

Power
Power Supply AC 100-240V~, 50/60Hz
Power Type Built-In Power

Power Consumption
Typ. 48 W
Max. 65 W
Smart Energy Saving 34 W
DPM 0.5 W↓
Power off 0.5 W↓
BTU (British Thermal Unit) 164 BTU/Hr(Typ.), 222BTU/Hr(Max.)

Standard (Certification)
Safety CB / NTRL
EMC FCC Class “A”/ CE / KC
ErP Yes

Software Compatibility
SuperSign CMS Yes
SuperSign Control+ Yes
SuperSign Cloud Yes
LG ConnectedCare Yes
Mobile CMS Yes

Connectivity
Input Digital (HDMI(2), HDCP 1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1)
Output Audio Out, USB2.0 Type B(1)

Language
OSD English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Türkçe, Polski

Accessory
Basic Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

Touch
Available Object Size for Touch Ø6mm ↑
Reponse Time (Based on ‘Paint’ app on Windows 10 PC) 90ms ↓
Accuracy 3.5 mm
Interface USB 2.0
Operating System Support Win 10/ 11, Android
Multi Touch Point Max. 10 Points
